GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

Markenbezeichnung: JUTAI
Modellnummer: GL-WLAN
MOQ: Unterstützung 1-10 Stück pro Probe
Preis: Verhandlungsfähig
Verpackungsdetails: Karton
Zahlungsbedingungen: T/T, Western Union, Wechat, Alipay, Paypal
Ausführliche Information
Produkt-Beschreibung
Ausführliche Information
Herkunftsort:
SHENZHEN CHINA
Zertifizierung:
CE
Leistungsaufnahme:
DC 12–24 V/1 A (5 V anpassbar)
Relaisausgang:
Gemeinsamer 2/3-Kanal-Gemeinschaftsanschluss
Laden:
Gleichstrom 30 V/2 A, Wechselstrom 220 V/1 A
Schnittstellen:
1×CAN, 1×RS485, 2×RS232
Kommunizieren:
WIFI/4G + Bluetooth
Betriebstemperatur:
-30 bis 80 °C
Versorgungsmaterial-Fähigkeit:
5000 Stück pro Monat
Hervorheben:

WiFi relay controller for industrial gates

,

4-relay WiFi controller with RS485 port

,

Wifi access control system with OTA update

Produkt-Beschreibung

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

The GateLink 4-Relay WiFi Controller is a professional industrial-grade control unit purpose-built for industrial gate systems and security setups, offering stable 125V/1A AC load compatibility to work seamlessly with standard industrial access and security hardware. This robust controller brings intelligent, reliable connectivity to traditional industrial control systems, delivering simplified integration and long-lasting performance to meet the strict operational demands of industrial environments.

Equipped with an RS485 communication port and independent relay output design, the controller ensures flexible and secure signal transmission while supporting separate control for multiple connected devices. This structural advantage makes it easy to expand and integrate with a wide range of industrial gates, alarms, and security components, creating a unified and efficient control network without complex wiring or retrofitting. The independent relay output enhances system stability and safety, avoiding interference between different devices and ensuring steady operation in continuous industrial use.

OTA remote update capability brings exceptional convenience to long-term system maintenance, allowing firmware upgrades to be completed wirelessly without on-site intervention or production downtime. This feature greatly reduces maintenance labor and operational disruptions, keeping the controller updated with the latest performance improvements and security enhancements. Designed for durability and stable performance in industrial settings, this 4-relay WiFi controller streamlines device control, strengthens system security, and improves overall operational efficiency for industrial gate and security management.



GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 0

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 1 GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 2 GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 3

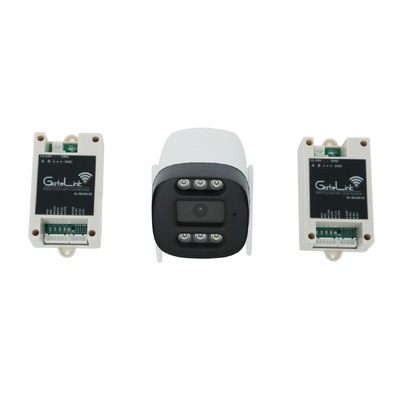

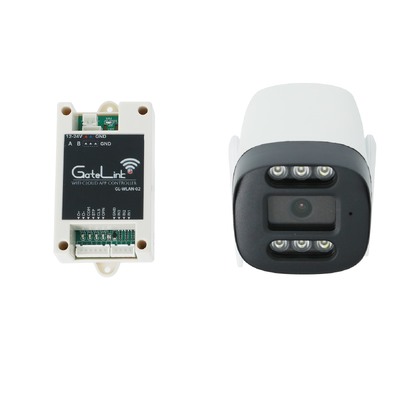

GL-WLAN-01 GL-WLAN-02 GL-WLAN-03







JUTAI GateLink Smart Controller & Camera Core Parameter Summary



General Controller Specifications (All Models)



All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.



Model-Specific Controller Parameters



  1. GL-WLAN-01 (2-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Relay output: 2 channels with shared common terminal

  • Load rating: DC 30V/2A, AC 220V/1A

  • Dimensions: 109.5 × 41.1 × 25.6 mm

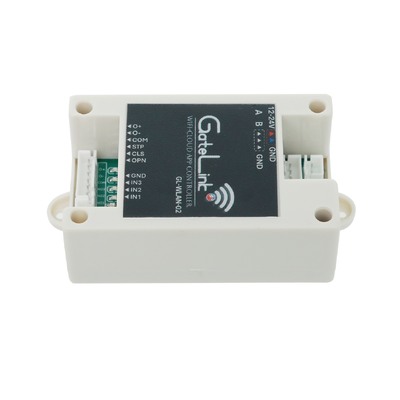

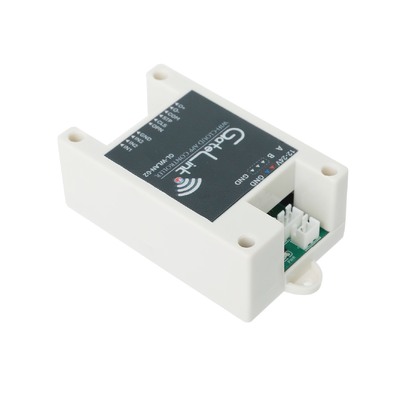

  1. GL-WLAN-02 (4-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Expansion port: 1 × RS485

  • Relay output: 3 shared common channels + 1 independent channel

  • Load rating: DC 30V/1A, AC 125V/1A

  • Dimensions: 96.5 × 50 × 31.4 mm



  1. GL-WLAN-03 (4-Relay 4G Controller)



  • Power input: DC 12-48V (max peak voltage 60V)

  • Communication: 4G + WiFi + BLE triple-mode

  • Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232

  • Input: 4-channel isolated digital input

  • Relay output: 4-channel independent NO/NC output

  • Load rating: DC 30V/10A, AC 220V/10A (high-power support)

  • Dimensions: 135 × 80 × 40 mm

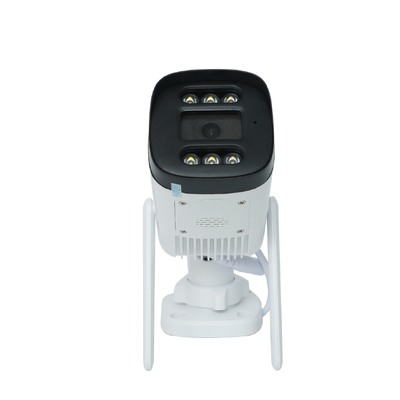

Camera Pixel Parameters



  • GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)

  • GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)

  • JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution



GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 4

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 5

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 6

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 7

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 8

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 9

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 10

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 11

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 12

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 13

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 14

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 15

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 16

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 17

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 18

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 19

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 20

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 21

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 22

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 23

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 24

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 25

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 26

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 27







Schlagworte:

Fernbedienung mit automatischem Tor

Fernempfänger für das automatische Tor

433 MHz Fernbedienungsempfänger

Guter Preis Online

Einzelheiten Zu Den Produkten

Haus > Produits >
Wifi-Zugangskontrollsystem für Türen
>
GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System
Alle Kategorien

Fahrzeugschleiferdetektor

Sensor für industrielle Türen

Infrarotlichtvorhang

Wifi-Zugangskontrollsystem für Türen

Parkplatzmanagementsystem

Schranke für die Schranke

Barriere-Radardetektor

Infrarotfotokellensensor

Mikrowellenbewegungs-Sensor

Verkehrssignal der Ampel

Schaltfläche drücken

Motor des gleitenden Tors

UHF-Langstreckenleser

Niedrigfrequenzleser 125K

Mifare RFID Reader 13,56 MHZ
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

Markenbezeichnung: JUTAI
Modellnummer: GL-WLAN
MOQ: Unterstützung 1-10 Stück pro Probe
Preis: Verhandlungsfähig
Verpackungsdetails: Karton
Zahlungsbedingungen: T/T, Western Union, Wechat, Alipay, Paypal
Ausführliche Information
Produkt-Beschreibung
Ausführliche Information
Herkunftsort:
SHENZHEN CHINA
Markenname:
JUTAI
Zertifizierung:
CE
Modellnummer:
GL-WLAN
Leistungsaufnahme:
DC 12–24 V/1 A (5 V anpassbar)
Relaisausgang:
Gemeinsamer 2/3-Kanal-Gemeinschaftsanschluss
Laden:
Gleichstrom 30 V/2 A, Wechselstrom 220 V/1 A
Schnittstellen:
1×CAN, 1×RS485, 2×RS232
Kommunizieren:
WIFI/4G + Bluetooth
Betriebstemperatur:
-30 bis 80 °C
Min Bestellmenge:
Unterstützung 1-10 Stück pro Probe
Preis:
Verhandlungsfähig
Verpackung Informationen:
Karton
Lieferzeit:
5-8 Arbeitstage
Zahlungsbedingungen:
T/T, Western Union, Wechat, Alipay, Paypal
Versorgungsmaterial-Fähigkeit:
5000 Stück pro Monat
Hervorheben:

WiFi relay controller for industrial gates

,

4-relay WiFi controller with RS485 port

,

Wifi access control system with OTA update

Produkt-Beschreibung

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System

The GateLink 4-Relay WiFi Controller is a professional industrial-grade control unit purpose-built for industrial gate systems and security setups, offering stable 125V/1A AC load compatibility to work seamlessly with standard industrial access and security hardware. This robust controller brings intelligent, reliable connectivity to traditional industrial control systems, delivering simplified integration and long-lasting performance to meet the strict operational demands of industrial environments.

Equipped with an RS485 communication port and independent relay output design, the controller ensures flexible and secure signal transmission while supporting separate control for multiple connected devices. This structural advantage makes it easy to expand and integrate with a wide range of industrial gates, alarms, and security components, creating a unified and efficient control network without complex wiring or retrofitting. The independent relay output enhances system stability and safety, avoiding interference between different devices and ensuring steady operation in continuous industrial use.

OTA remote update capability brings exceptional convenience to long-term system maintenance, allowing firmware upgrades to be completed wirelessly without on-site intervention or production downtime. This feature greatly reduces maintenance labor and operational disruptions, keeping the controller updated with the latest performance improvements and security enhancements. Designed for durability and stable performance in industrial settings, this 4-relay WiFi controller streamlines device control, strengthens system security, and improves overall operational efficiency for industrial gate and security management.



GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 0

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 1 GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 2 GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 3
GL-WLAN-01 GL-WLAN-02 GL-WLAN-03







JUTAI GateLink Smart Controller & Camera Core Parameter Summary



General Controller Specifications (All Models)



All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.



Model-Specific Controller Parameters



  1. GL-WLAN-01 (2-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Relay output: 2 channels with shared common terminal

  • Load rating: DC 30V/2A, AC 220V/1A

  • Dimensions: 109.5 × 41.1 × 25.6 mm



  1. GL-WLAN-02 (4-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Expansion port: 1 × RS485

  • Relay output: 3 shared common channels + 1 independent channel

  • Load rating: DC 30V/1A, AC 125V/1A

  • Dimensions: 96.5 × 50 × 31.4 mm



  1. GL-WLAN-03 (4-Relay 4G Controller)



  • Power input: DC 12-48V (max peak voltage 60V)

  • Communication: 4G + WiFi + BLE triple-mode

  • Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232

  • Input: 4-channel isolated digital input

  • Relay output: 4-channel independent NO/NC output

  • Load rating: DC 30V/10A, AC 220V/10A (high-power support)

  • Dimensions: 135 × 80 × 40 mm



Camera Pixel Parameters



  • GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)

  • GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)

  • JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution



GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 4

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 5

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 6

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 7

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 8

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 9

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 10

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 11

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 12

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 13

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 14

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 15

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 16

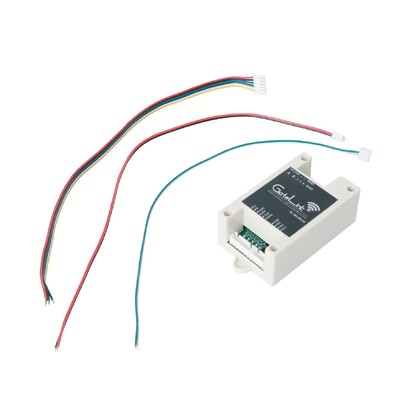

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 17

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 18

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 19

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 20

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 21

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 22

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 23

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 24

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 25

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 26

GateLink 4-Relay WiFi Controller 125V/1A AC Load RS485 Port Independent Relay Output OTA Update for Industrial Gate & Security System 27







Schlagworte:

Fernbedienung mit automatischem Tor

Fernempfänger für das automatische Tor

433 MHz Fernbedienungsempfänger

13143400257
Schnelle Verbindung
Haus ÜBER US produits Anwendung Neuigkeiten Fälle Treten Sie mit uns in Verbindung
Schnelle Kontaktaufnahme

Adresse

5F, Gebäude A1, Industriezone Xuxingda, Straße Shiyan, Bezirk Baoan, Shenzhen, China

Telefon

86--13143400257

13143400257
Unser Newsletter
Abonnieren Sie unseren Newsletter für Rabatte und mehr.
Privacy policy |  Sitemap  | Gute Qualität Chinas Fahrzeugschleiferdetektor Lieferant. Copyright-© 2024-2026 Shenzhen Jutai Comm Co., Ltd. . Alle Rechte vorbehalten.
