NED200 Industrial-Grade LED Drive Board, Intelligent LED Display Control Core with RS485/Ethernet/MQTT Multi-Protocol for Parking Lot & Factory Automation

Markenbezeichnung:	JUTAI
Modellnummer:	200 NED
MOQ:	Unterstützung 1-10 Stück pro Probe
Preis:	Verhandlungsfähig
Verpackungsdetails:	1 Satz 1 Zeichentrickfilm
Zahlungsbedingungen:	T/T, Western Union, Paypal, Alipay

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

SHENZHEN CHINA

Zertifizierung:

Kommunikationsschnittstelle::

TCP/IP, RS232, RS485, TTL, Wiegand 26/34

Betriebsspannung::

DC12V

Betriebsstrom::

2A Max

Betriebstemperatur::

-40 °C bis 85 °C

Gesamtabmessungen::

115 mm (L) * 85 mm (B) * 15 mm (H)

Befestigungslochabstand::

105 mm (L) * 75 mm (B)

IO-Schnittstelle::

2IO-Eingang, 2OC IO-Ausgang, 2Relais-IO-Ausgang

Bildschirmschnittstelle::

HUB75, HUB08

Leistungsverstärkerausgang::

1 Port, 4Ω 8W

Unterstützte Protokolle::

RS485, TCP, MQTT

Versorgungsmaterial-Fähigkeit:

2000 Set pro Monat

Hervorheben:

Industrial LED drive board with RS485

LED display control core with Ethernet

Parking lot automation LED drive board

Produkt-Beschreibung

NED200 LED Display Driver Board with Dual QR Code Display (Long/Short Distance), Voice Broadcast & Remote IAP Upgrade for Commercial Complexes & Scenic Areas

The NED200 LED Display Driver Board is a professional intelligent control device tailored for commercial complexes and scenic areas, featuring dual QR code display modes (long/short distance) to meet diverse interactive needs. As a core link between upper-level systems and LED display terminals, it integrates voice broadcast and remote IAP upgrade functions, providing a seamless and efficient control solution for commercial and scenic display scenarios. Its dual QR code design supports full-screen QR codes for long-distance scanning (2-5m) and 3-line QR codes for short-distance scanning (0.5-2m), enabling functions like scan-to-get mall coupons, scenic spot tour routes, and navigation maps, while the 4-line independent control supports up to 80 bytes per line and over 100 languages, perfectly displaying floor navigation, activity notices, and scenic spot introductions.

Equipped with high-performance voice broadcast and remote IAP upgrade capabilities, the NED200 LED Display Driver Board enhances operational convenience and user experience for commercial complexes and scenic areas. It supports sequential and immediate voice play modes, with 8MB storage for up to 256 voice files, enabling real-time voice prompts for promotions, safety guidelines, and visitor reminders. The remote IAP upgrade function allows seamless updates via TCP, browser, or cloud platform, adding new functions and optimizing logic without on-site operations. With industrial-grade reliability (-40℃~85℃ wide operating temperature, ESD and overcurrent protection), it operates stably in indoor and outdoor scenarios, seamlessly linking with mall management systems and scenic area equipment to boost management efficiency and visitor satisfaction.

Core Advantages
* Multi-Protocol Communication: Supports RS485, Ethernet and MQTT three mainstream communication methods, easy to connect with various management systems
* 4-Line Independent Control: Realize independent display of 4-line LED screen, single line max 80 bytes, support multi-language display (100+ languages worldwide)
* Dual QR Code Display Modes: Full-screen QR code (2-5m long-distance scanning) and 3-line QR code (0.5-2m short-distance scanning) for different scenario needs
* Integrated Interactive Functions: Integrate voice broadcast control, relay linkage and IO status reading, realize one-stop control of LED display and peripheral devices
* Industrial Grade Reliability: -40℃~85℃ wide operating temperature, with reverse connection, ESD/pulse and overcurrent protection, suitable for harsh outdoor/industrial environments
* Flexible Expansion & Upgrade: Support remote IAP upgrade (TCP/browser/cloud), 8MB voice storage (max 256 files), and can link barriers, sensors, voice equipment, etc.
* Real-Time Time Display: Support custom time format overlay display, automatic real-time update without manual operation

Key Technical Parameters
Basic Electrical & Physical Parameters
* Operating Voltage: DC12V (with reverse connection protection)
* Operating Current: 2A MAX
* Operating Temperature: -40℃ ~ 85℃ (relative humidity <80%, no condensation)
* Overall Dimensions: 115mm (Length) * 85mm (Width) * 15mm (Height)
* Mounting Hole Spacing: 105mm (Length) * 75mm (Width)
* Built-in Power Conversion: 12V to 5V circuit, max 1.2A continuous current output for external devices

Rich Interface Configuration
* Ethernet (TCP/IP) Interface: 1 port, 10/100M adaptive, with isolation
* RS232 Interface: 2 ports, independent operation, 4800-115200bps adjustable, ESD/pulse protection
* RS485 Interface: 1 port, 4800-115200bps adjustable, ESD/pulse protection
* TTL Interface: 1 port, 4800-115200bps, 3.3V level
* Wiegand Interface: 1 port, Wiegand 26/34 adaptive
* IO Input: 2 channels, non-isolated, 0-5V signal range
* IO Output: 2OC non-isolated (max 12V/0.2A) + 2relay isolated (250VAC 10A / 30VDC 10A)
* Power Amplifier Output: 1 port, 4Ω 8W
* LED Display Interface: 1HUB75 + 1HUB08 (external expansion for 4*HUB12)

Functional Parameters

* Supported Protocols: RS485 (9600 baud rate), TCP (port 8008), MQTT
* Display Capacity: 4-line independent control, single line max 80 bytes
* QR Code Display: Full-screen (max 52 characters) / 3-line (max 77 characters), white color
* Voice Broadcast: Max 32 voice IDs per command, sequential/immediate play mode, 8MB storage (250+ files)
* Remote Upgrade: Support TCP/browser/cloud IAP upgrade
* Unique Identifier: Global unique ID for device identification and access control
* Supported Encodings: GBK, UTF8, UNICODE (optional, single support only)

Main Core Functions

1. Multi-Line Independent LED Display

* 4-line independent control, each line can set exclusive display content
* Support 100+ languages, compatible with Chinese, English, numbers and other national languages
* Real-time time overlay display, custom time format (year/month/day/hour/minute/second), automatic update
* Max 80 bytes per line, meet all text information display needs of various scenarios

2. Dual QR Code Interactive Display

* Full-screen QR Code: For 2-5m long-distance scanning, max 52 characters, auto truncate excess content
* 3-line QR Code: For 0.5-2m short-distance scanning, 4th line for text description, max 77 characters
* Fixed white QR code color, auto clear original content, restore via command after exiting QR code mode
* Realize scan code payment, scan code navigation, scan code registration and other interactive operations

3. Voice Broadcast Control

* Control voice board to play preset voice files (8MB storage, max 256 files)
* Two play modes: Sequential Play (wait for previous end) / Immediate Play (interrupt current voice)
* Max 32 voice IDs per command, support on-site voice file update via special tools
* Link with external events (IO trigger, scan code, etc.) to realize automatic voice broadcast

4. Peripheral Linkage & IO Detection

* Relay Control: 2-channel relay isolated output, support set closing time (0.1s unit), link barriers, lights, power supplies
* IO Status Reading: 2-channel IO input, detect dry contact signals (0=invalid/1=valid), monitor sensor/button trigger status
* Automatic Linkage: Realize "signal detection - voice broadcast - relay action" one-stop automation, no manual intervention

5. Remote Upgrade & Management

* Support remote IAP upgrade via TCP upgrade tool, browser or cloud platform
* Real-time add new functions, optimize existing logic without on-site operation
* Global unique ID, realize device access control and source identification, protect customer rights

Typical Application Scenarios

1. Parking Lot Scenario

* 4-line display: Parking space number, parking fee, real-time time, warm reminder
* Full-screen QR code display for scan code payment, no need to get off or queue
* IO detect vehicle entry/exit, trigger voice broadcast "Welcome/Thank you for coming"
* Relay linkage barrier, realize "scan code payment - barrier open - voice prompt" automation

2. Commercial Complex Scenario

* 4-line display: Floor navigation, brand promotion, activity notice, real-time time
* 3-line QR code for scan code to get mall map/coupons, 4th line for text prompt
* Link with mall system, real-time update promotion information and activity notice

3. Park/Scenic Area Scenario

* 4-line display: Safety guidelines, temporary activity, scenic spot introduction, real-time time
* 3-line QR code for scan code to get tour route, 4th line mark "Scan for detailed guide"
* IO detect personnel flow, trigger voice broadcast of safety tips and scenic spot reminders

4. Factory/Workshop Scenario

* 4-line display: Production schedule, equipment status, safety notice, real-time time
* IO detect equipment abnormality, trigger voice broadcast "Equipment error, please handle in time"
* Relay linkage cut off equipment power supply, avoid failure expansion
* Realize intelligent production management and equipment fault early warning

5. Community/Access Control Scenario

* 4-line display: Visitor information, access notice, real-time time, security tips
* 3-line QR code for visitor scan code registration, 4th line for registration guide
* After successful registration, relay open access control and play voice "Welcome"
* Realize unmanned access control management and visitor information traceability

Packaging & Shipping

Packaging

* Standard anti-static packaging for industrial control PCB board
* Built-in foam shockproof protection, avoid damage during transportation
* Customized packaging and labeling according to customer requirements (OEM/ODM)

Shipping

* Support international express: DHL, FedEx, UPS, TNT, EMS (3-7 working days)
* Support air freight/sea freight for bulk orders (15-30 working days, depends on destination)
* We will provide tracking number immediately after shipping, real-time track logistics status
* Professional packaging for long-distance transportation, ensure product intact

Customization Service

We provide one-stop OEM/ODM customization services for global customers, including:

* Firmware function customization and protocol adaptation (customize according to scenario needs)
* Voice file customization and preloading (custom voice broadcast content)
* Labeling and LOGO customization (print customer brand and model)
* Hardware interface adjustment (according to actual device connection needs)
* Cloud platform docking customization (seamless connection with customer's existing management system)

Please contact us with your detailed customization requirements, we will provide professional solutions and quotations.

Frequently Asked Questions (FAQ)

Q1: What communication methods does the NED200 support?

A: It supports three mainstream communication methods: RS485, Ethernet (TCP) and MQTT, which can be flexibly selected according to the actual scenario.

Q2: How many languages does the LED drive board support?

A: It supports more than 100 languages worldwide, the default font library includes Simplified/Traditional Chinese, English, Thai, Korean, Arabic, etc., and supports GBK/UTF8/UNICODE encoding.

Q3: Can the QR code display mode be switched freely?

A: Yes, it supports full-screen and 3-line QR code two modes, the original display content can be restored by sending a command after exiting the QR code mode.

Q4: Is the NED200 suitable for outdoor use?

A: Yes, it is industrial grade design, with -40℃~85℃ wide operating temperature and multiple protection functions, fully suitable for outdoor harsh environments.

Q5: Does it support remote upgrade?

A: Yes, it supports remote IAP upgrade via TCP upgrade tool, browser or cloud platform, which can add new functions and optimize logic in real time without on-site operation.

Q6: Can it link with peripheral devices such as barriers and sensors?

A: Yes, it has 2-channel relay output and 2-channel IO input, which can link barriers, lights, sensors, buttons and other
peripheral devices to realize automatic linkage control.

Schlagworte:

Einzelheiten Zu Den Produkten

Haus > Produits >

Fahrzeugschleiferdetektor

NED200 Industrial-Grade LED Drive Board, Intelligent LED Display Control Core with RS485/Ethernet/MQTT Multi-Protocol for Parking Lot & Factory Automation

Alle Kategorien

NED200 Industrial-Grade LED Drive Board, Intelligent LED Display Control Core with RS485/Ethernet/MQTT Multi-Protocol for Parking Lot & Factory Automation

Markenbezeichnung:	JUTAI
Modellnummer:	200 NED
MOQ:	Unterstützung 1-10 Stück pro Probe
Preis:	Verhandlungsfähig
Verpackungsdetails:	1 Satz 1 Zeichentrickfilm
Zahlungsbedingungen:	T/T, Western Union, Paypal, Alipay

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

SHENZHEN CHINA

Markenname:

JUTAI

Zertifizierung:

Modellnummer:

200 NED

Kommunikationsschnittstelle::

TCP/IP, RS232, RS485, TTL, Wiegand 26/34

Betriebsspannung::

DC12V

Betriebsstrom::

2A Max

Betriebstemperatur::

-40 °C bis 85 °C

Gesamtabmessungen::

115 mm (L) * 85 mm (B) * 15 mm (H)

Befestigungslochabstand::

105 mm (L) * 75 mm (B)

IO-Schnittstelle::

2IO-Eingang, 2OC IO-Ausgang, 2Relais-IO-Ausgang

Bildschirmschnittstelle::

HUB75, HUB08

Leistungsverstärkerausgang::

1 Port, 4Ω 8W

Unterstützte Protokolle::

RS485, TCP, MQTT

Min Bestellmenge:

Unterstützung 1-10 Stück pro Probe

Preis:

Verhandlungsfähig

Verpackung Informationen:

1 Satz 1 Zeichentrickfilm

Lieferzeit:

5-8 Werktage

Zahlungsbedingungen:

T/T, Western Union, Paypal, Alipay

Versorgungsmaterial-Fähigkeit:

2000 Set pro Monat

Hervorheben:

Industrial LED drive board with RS485

LED display control core with Ethernet

Parking lot automation LED drive board

Produkt-Beschreibung

NED200 LED Display Driver Board with Dual QR Code Display (Long/Short Distance), Voice Broadcast & Remote IAP Upgrade for Commercial Complexes & Scenic Areas

Schlagworte:

Fahrzeugschleiferdetektor

Sensor für industrielle Türen

Infrarotlichtvorhang

Wifi-Zugangskontrollsystem für Türen

Parkplatzmanagementsystem

Schranke für die Schranke

Barriere-Radardetektor

Infrarotfotokellensensor

Mikrowellenbewegungs-Sensor

Verkehrssignal der Ampel

Schaltfläche drücken

Motor des gleitenden Tors

UHF-Langstreckenleser

Niedrigfrequenzleser 125K

Mifare RFID Reader 13,56 MHZ

Fahrzeugschleiferdetektor

Sensor für industrielle Türen

Infrarotlichtvorhang

Wifi-Zugangskontrollsystem für Türen

Parkplatzmanagementsystem

Schranke für die Schranke

Barriere-Radardetektor

Infrarotfotokellensensor

Mikrowellenbewegungs-Sensor

Verkehrssignal der Ampel

Schaltfläche drücken

Motor des gleitenden Tors

UHF-Langstreckenleser

Niedrigfrequenzleser 125K

Mifare RFID Reader 13,56 MHZ

Einzelheiten zu den Produkten

Fahrzeugschleiferdetektor

Sensor für industrielle Türen

Infrarotlichtvorhang

Wifi-Zugangskontrollsystem für Türen

Parkplatzmanagementsystem

Schranke für die Schranke

Barriere-Radardetektor

Infrarotfotokellensensor

Mikrowellenbewegungs-Sensor

Verkehrssignal der Ampel

Schaltfläche drücken

Motor des gleitenden Tors

UHF-Langstreckenleser

Niedrigfrequenzleser 125K

Mifare RFID Reader 13,56 MHZ

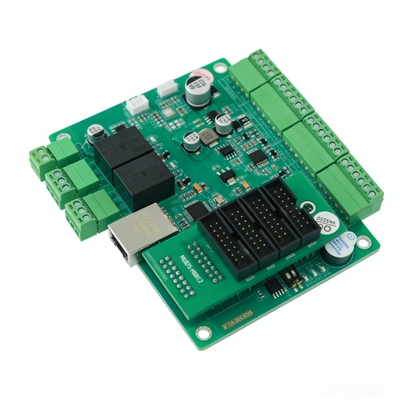

NED200 Industrial-Grade LED Drive Board, Intelligent LED Display Control Core with RS485/Ethernet/MQTT Multi-Protocol for Parking Lot & Factory Automation

Industrial LED drive board with RS485

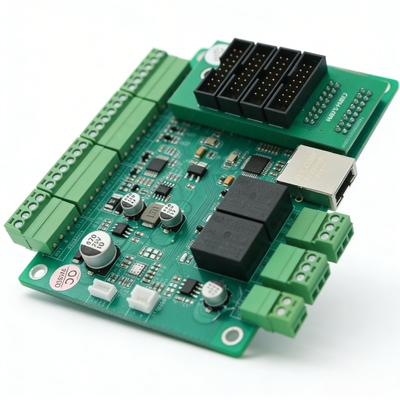

LED display control core with Ethernet

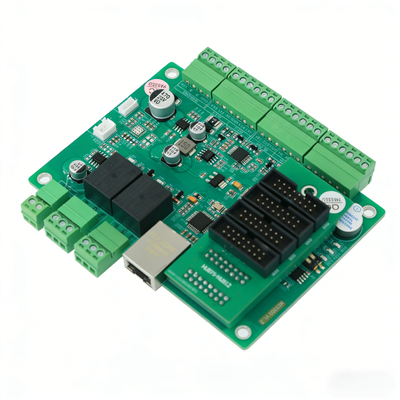

Parking lot automation LED drive board

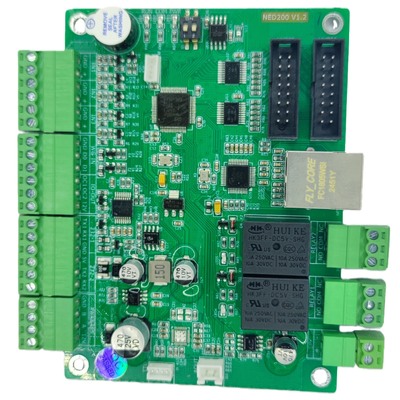

NED200 LED Display Driver Board with Dual QR Code Display (Long/Short Distance), Voice Broadcast & Remote IAP Upgrade for Commercial Complexes & Scenic Areas

Induktivschleiferdetektor

Fahrzeugschleifenmelder

Straßenschleiferdetektor

Einzelheiten Zu Den Produkten

Fahrzeugschleiferdetektor

Sensor für industrielle Türen

Infrarotlichtvorhang

Wifi-Zugangskontrollsystem für Türen

Parkplatzmanagementsystem

Schranke für die Schranke

Barriere-Radardetektor

Infrarotfotokellensensor

Mikrowellenbewegungs-Sensor

Verkehrssignal der Ampel

Schaltfläche drücken

Motor des gleitenden Tors

UHF-Langstreckenleser

Niedrigfrequenzleser 125K

Mifare RFID Reader 13,56 MHZ

NED200 Industrial-Grade LED Drive Board, Intelligent LED Display Control Core with RS485/Ethernet/MQTT Multi-Protocol for Parking Lot & Factory Automation

Industrial LED drive board with RS485

LED display control core with Ethernet

Parking lot automation LED drive board

NED200 LED Display Driver Board with Dual QR Code Display (Long/Short Distance), Voice Broadcast & Remote IAP Upgrade for Commercial Complexes & Scenic Areas

Induktivschleiferdetektor

Fahrzeugschleifenmelder

Straßenschleiferdetektor
