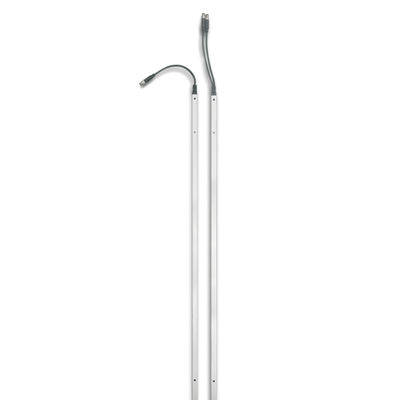

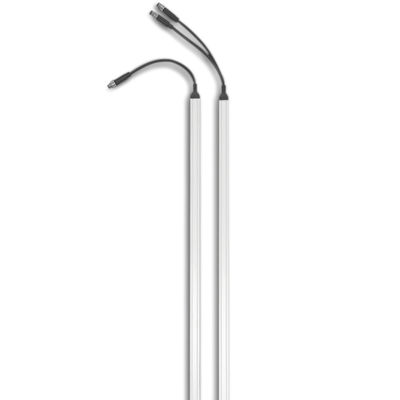

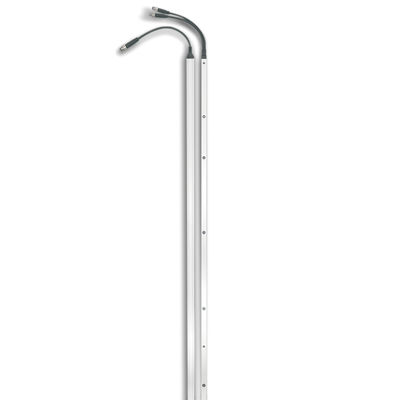

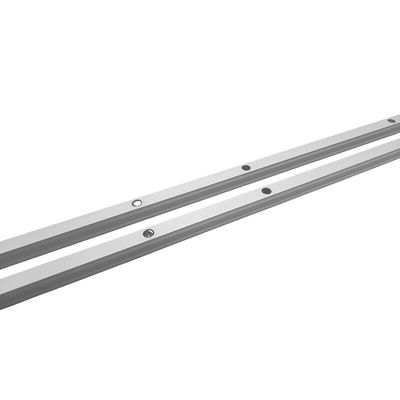

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain

Markenbezeichnung: JUTAI
Modellnummer: CG15-8L
MOQ: Support 1-10 pcs for testing
Preis: Verhandlungsfähig
Verpackungsdetails: 1 set 1 cartoon. 8 set 1 big cartoon
Zahlungsbedingungen: T/T, Western Union
Ausführliche Information
Produkt-Beschreibung
Ausführliche Information
Place of Origin:
Shenzhen China
Zertifizierung:
CE
Working Voltage:
12 - 30VADC
Working Current:
64mA@DC12V / 44mA@DC24V / 34mA@DC30V
Output Load:
Maximum switching current: 1A, maximum switching voltage: 125V@AC, 60V@DC
Output:
Transmitter: - ；Receiver: NO, NC, COM
LED Status:
Transmitter: Green light always on (normal) ；Receiver: Red light (object obstruction), green light (unobstructed, power supply), red light flashing (first power on)
Angle:
Transmitter: ±15° ；Receiver: ±65°

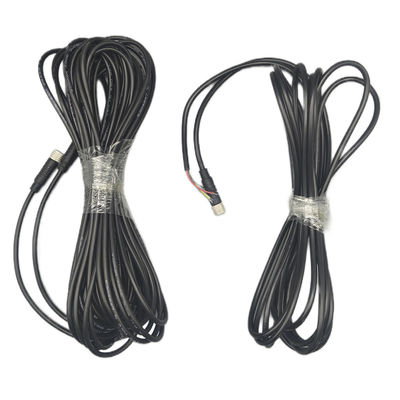

Cable Length:
Transmitter Size 12m Receiver Size 4 m
Number of Optical Eyes:
8
Light Eye Distance:
175 mm
Wavelength:
950nm
Detection Distance:
12m (Indoor/Outdoor)
Response Speed:
23 ms
Closest Installation Distance:
50 cm
Cable Specifications:
AWG26
Shell Material:
Natural alumina
Protection Grade:
IP67
Operation Temperature:
-40°C ~ +70°C
Supply Ability:
1000 set per month
Hervorheben:

high-speed roller door safety system

,

cross-beam tech infrared light curtain

,

vehicle loop detector safety system

Produkt-Beschreibung

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain

Guardian for Your Fast-Moving Doors
Transform your bustling entry points with our high-speed roller door safety system, where cross-beam technology creates an intelligent shield across rapidly moving doors. Designed for warehouses, loading docks, and high-traffic facilities, this infrared light curtain seamlessly integrates into roller door assemblies to detect obstacles and prevent collisions the moment doors descend. Unlike conventional sensors, our interlocking beam pattern eliminates dangerous blind spots at critical door edges and thresholds, ensuring even small objects or limbs trigger instant safety responses. The rugged yet discreet system withstands dust, vibrations, and constant operation, acting as a silent sentinel that keeps workflows smooth while protecting both personnel and goods from accidental impacts.



Smarter Protection, Uninterrupted Productivity
Experience foolproof door safety that adapts to your pace. Our infrared safety curtain uses advanced cross-beam scanning to monitor high-speed roller doors with unparalleled precision, stopping downward motion before contact occurs. Engineered for demanding industrial environments, it prevents costly entrapments of forklifts, pallets, or personnel while shielding door mechanisms from impact damage. The weather-resistant design operates reliably in freezing cold storage or humid loading bays, delivering consistent performance without false alarms from debris or shadows. By seamlessly blending into door tracks, it requires zero operational space and minimal maintenance – a set-and-forget solution that lets you focus on productivity while it guards against accidents 24/7.



High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 0





Product Size



High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 1





Wiring



High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 2





Production



High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 3 High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 4 High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 5



High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 6 High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 7 High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 8





Product Series



CG15-8L CL05-10L CL10-8L CL10-16L CL15-8L

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 91.5 m 8 Infrared Beam

Cross Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 10
0.5 m 16 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 11

1 m 8 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 12

1 m 16 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 13

1.5 m 8 Infrared Beam

Parallel Beam Version
CL15-16L CL20-8L CL20-16L CL25-8L CL25-16L

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 14

1.5 m 16 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 15

2 m 8 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 16

2 m 16 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 17

2.5 m 8 Infrared Beam

Parallel Beam Version

High-Speed Roller Door Safety System with Cross-Beam Tech Infrared Light Curtain 18

2.5 m 16 Infrared Beam

Parallel Beam Version
